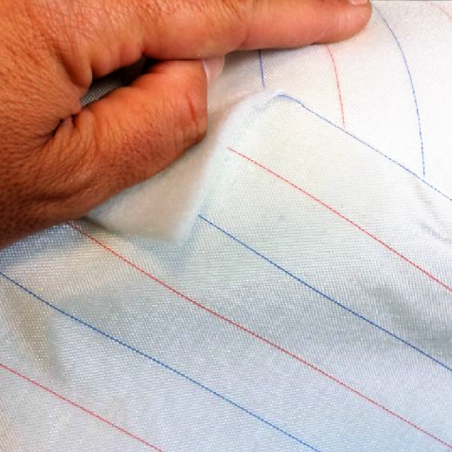

Vacuopeel PA-80-PES200 Complex Breather

VACUOPEEL™ is a multilayer system (without adhesive or glue) used in manufacturing processes for vacuum moulding of composite materials with techniques such as prepreg, wet lay-up, and thermoplastic.

It is a 3 products combination:

• a peel ply
• a perforated film
• a breather/bleeder felt

VACUOPEEL™ system is applied in a single piece, and it comes off in a two pieces. In other words, when you remove it after the curing process, you remove the breather felt and the perforated film together, then the peel ply : it can be useful to leave the peel ply on until later to protect a part - for example, just before assembly, painting, or some other operation.

VACUOPEEL™ is a “smart complex” which gives many benefits to the producers : save time, improve the composites quality, one product to buy instead of 3, one product to apply instead of 3.

After the laminate is cured, remove the VACUOPEEL™ in 2 times:
1. Remove the bleeder which includes the perforated film.
2. Remove the peel ply at you convenience.

Vacuopeel PA-80-PES200 carries a nylon 80 g/m2 peel ply, a perforated release film and PES200 non woven 200 g/m2 felt.

Compatible with epoxy, vinyl ester, urethane-acrylate and polyester resins.

Roll widthness: 150 cm

Type of supply

Vacuopeel PA-80-PES200 Complex Breather x 1 linear m, supplied in plastic bag

Vacuopeel PA-80-PES200 Complex Breather x 3 linear, supplied in plastic bag

Vacuopeel PA-80-PES200 Complex Breather x 75 m2 roll, supplied in plastic bag
