Divinycell PN80 5 GSC30 PET Foam Scrim of 5 mm, 80 kg/m3

Divinycell PN80 is a structurally strong PET sandwich core material perfectly suited in a variety of applications to increase their performance and to decrease their weight. In the wind energy segment, its excellent mechanical properties and good processing characteristics make it highly suitable for both blades and nacelles.

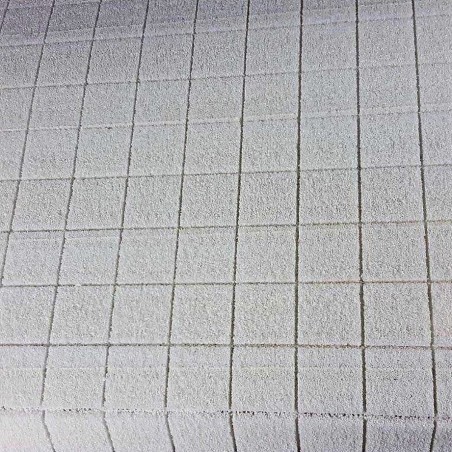

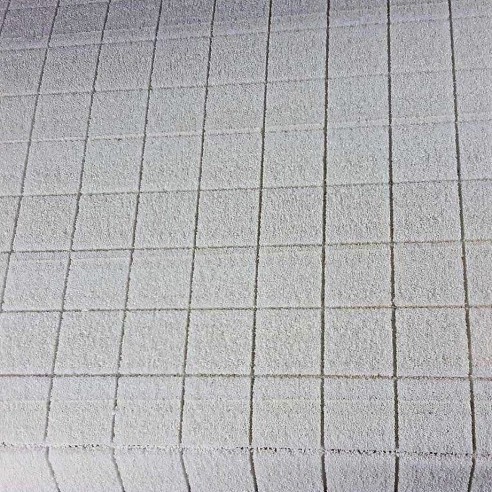

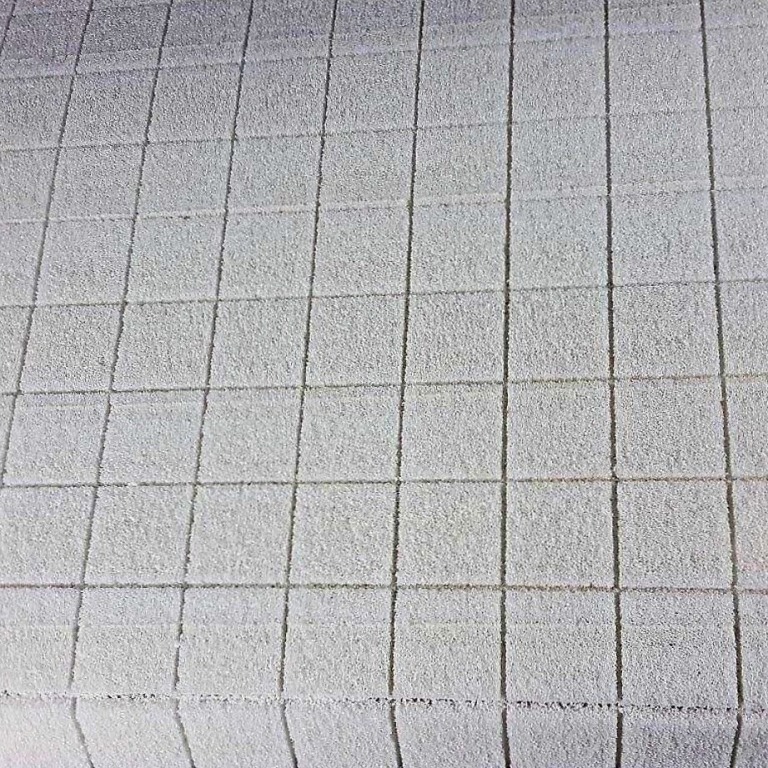

GSC30 is a grid scored material in two directions, which makes it formable and flexible for use in curved molds or applications.

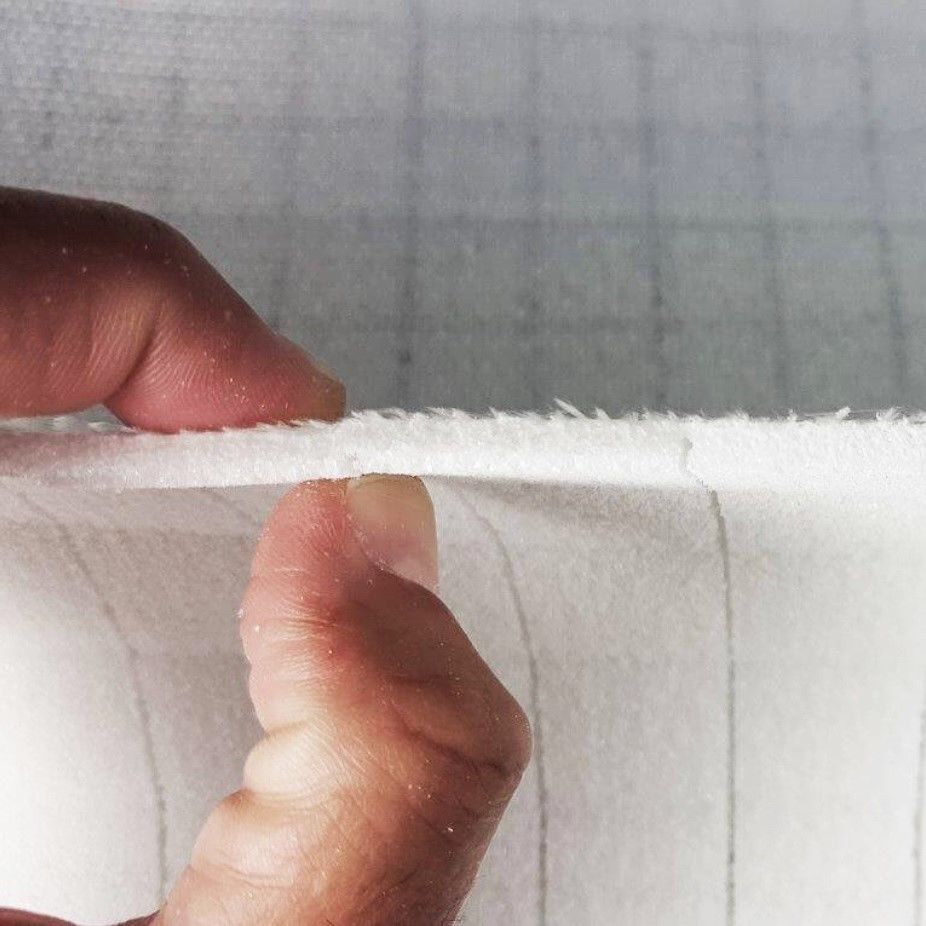

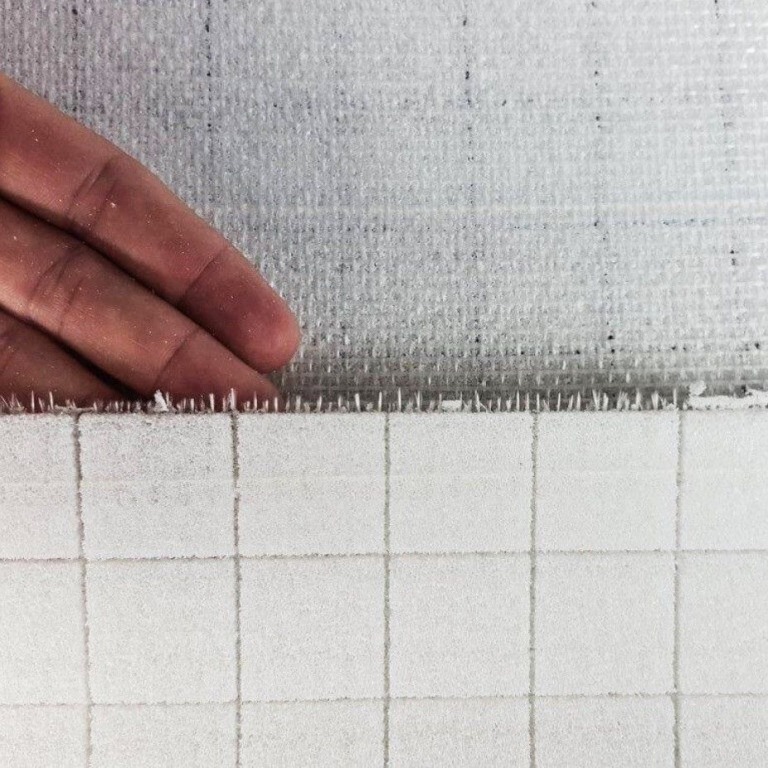

The sheet has V-shaped cuts in length and width direction of the sheet almost all the way through the core. To reinforce the sheet a light weight fiberglass scrim is used on the opposite side of the cuts

Divinycell PN has got excellent chemical resistance and is compatible with all commonly used resin systems such as polyester, epoxies, vinyl esters and more. With its high processing temperature performance and good dimensional stability at elevated processing temperatures, it can be readily used in infusion or with a wide variety of prepreg systems as an alternative to press bonding or contact moulding.

Divinycell PN80 is the 80 kg/m3 density product.

Main Properties

• High temperature resistance
• Recyclable
• Thermoformable
• Good chemical resistance
• Good mechanical properties
• Minimum resin uptake

Applications

• Wind blades
• Nacelles
• Tanks and Covers
• Panelling
• Sport goods
• Goods Transport
• Furnitures

Type of supply

Divinycell PN80 5 GSC30 scrim PET FOAM, supplied in sheets of 1220 x 1220 x 5 mm (1,49 m2) rolled in cardboard box

Divinycell PN80 5 GSC30 scrim PET FOAM, box of 50 sheets of 1220 x 1220 x 5 mm (74,42 m2)
