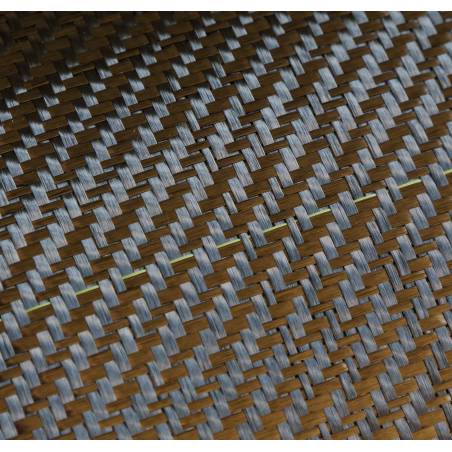

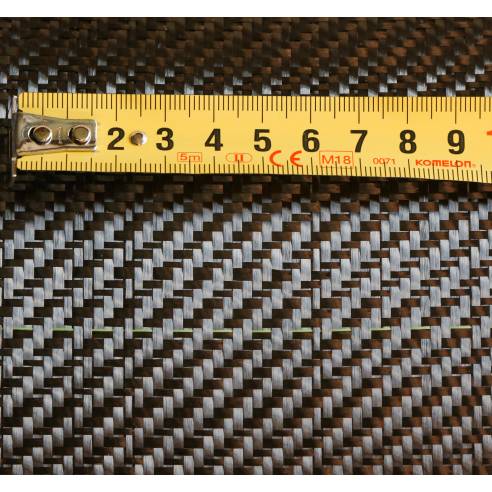

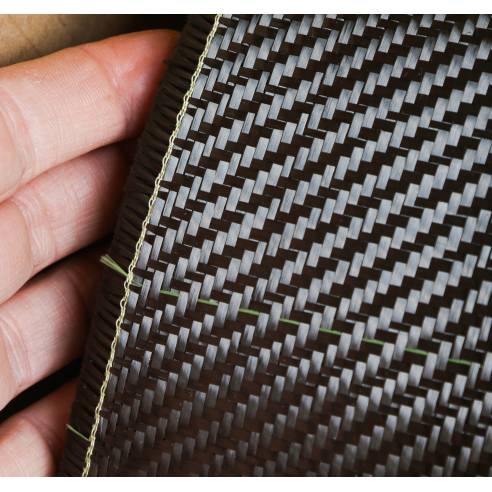

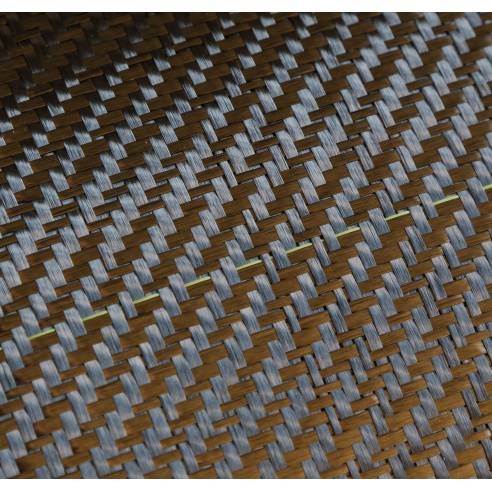

200 gsm Twill 2x2 3K Carbon Fabric with green tracing thread (SPOT), 127 cm wide

Twill carbon fabric for high performance applications where high strength and low weight is required.

HexTow® AS4C carbon fiber is a continuous, high strength, high strain, PAN based fiber available in 3,000 (3K), 6,000 (6K) and 12,000 (12K) filament count tows. This fiber has been surface treated and can be sized to improve its interlaminar shear properties, handling characteristics, and structural properties, and is suggested for use in weaving, prepregging, filament winding, braiding, and pultrusion.

Compatible with all type of thermosetting resins such us urethane-acrylate, vinyl ester and epoxy. Suitable for hand lay-up, infusion or RTM (Inyection).

Type of yarn: 3K (3000 filaments per strand of yarn).

Mechanical properties:

• Tensile strength: 4,463 MPa
• Tensile modulus: 231 GPa

Roll width: 127 cm

Manufacturer: Hexcel

SPOT reinforcements are fibres that come from overproduction of some of the highest quality materials or that may present small quality defects, which do not significantly affect the manufacture of the composite. Among the small defects in these fabrics we can mention these: a missing fibre yarn or a small crease in the fabric. They are always small imperfections or even negligible. The lower price more than compensates for the minor defects that may be present in these fibres/fabrics.

¡They are all top brand fibres/fabrics that are sold as a second quality ones, but we believe are a great bargain for our customers!

Type of supply

200 gsm Twill 2x2 3K Carbon Fabric Hexcel AS4C-GP SPOT, 127 cm wide x 25 m2, supplied rolled in cardboard box

200 gsm Twill 2x2 3K Carbon Fabric Hexcel AS4C-GP SPOT, 127 cm wide x 50 m2, supplied rolled in cardboard box

200 gsm Twill 2x2 3K Carbon Fabric Hexcel AS4C-GP SPOT, 127 cm wide x 298 m2 roll, supplied rolled in cardboard box
