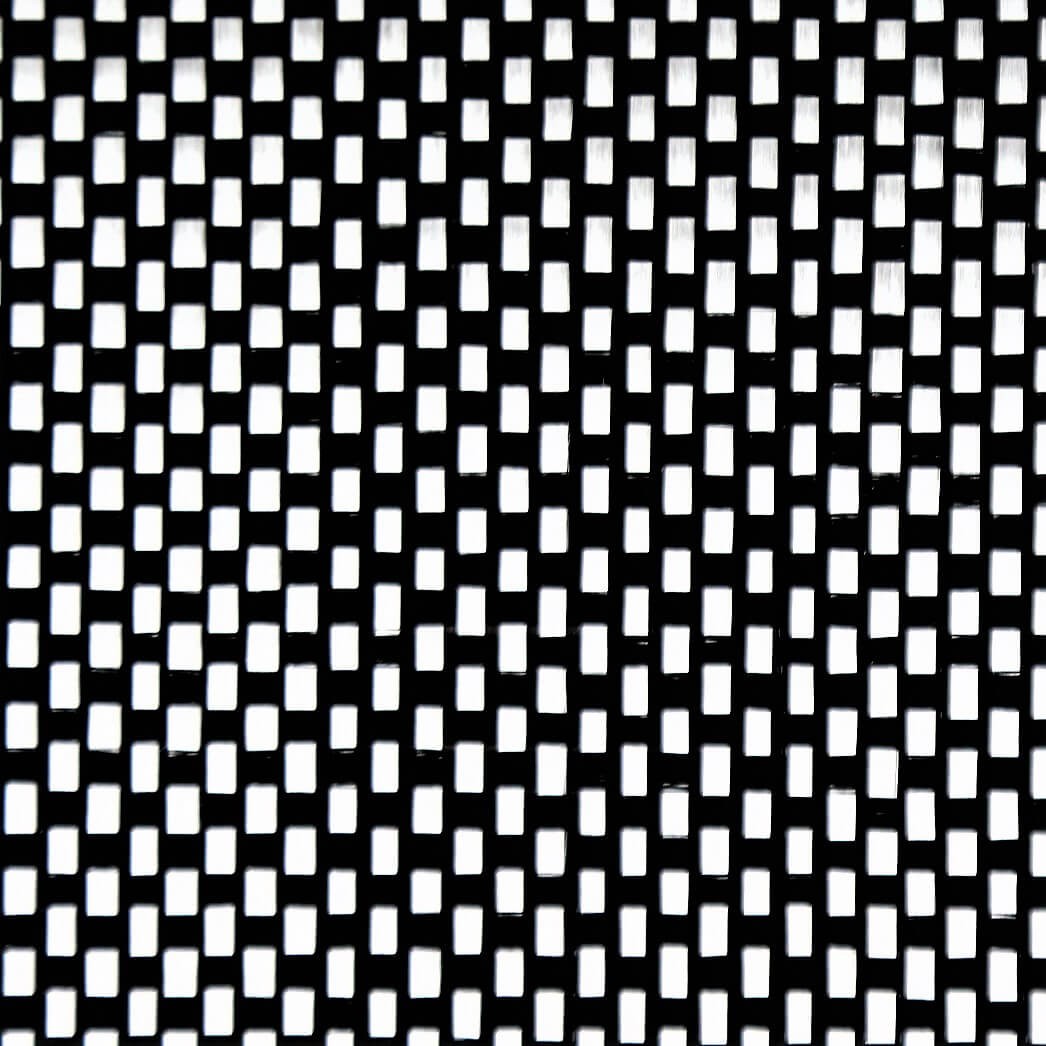

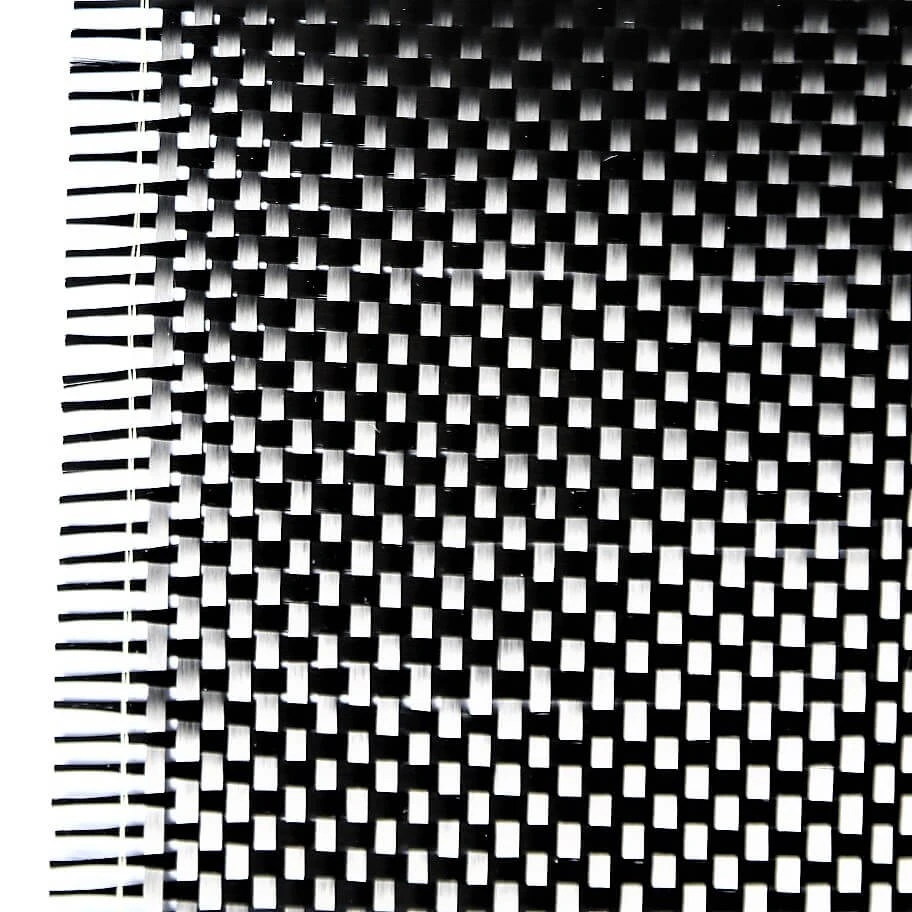

55 gsm 1K Carbon Fabric Spread Tow Style E458-1

Spread Tow carbon reinforcements are using spread tows to produce optimized reinforcements for ultra light composites.

Spreading tows (yarns) into very thin tapes enables reinforcements in woven structure as well as unidirectional tapes with mechanical performance and possibility for weight savings that are unique compared to conventional reinforcements.

The Spread Tow UD tapes produced are much thinner than conventional carbon fiber tapes and have more material packed in the same area which gives better mechanical performance.

These type of fabrics are suitable for infusion, injection (RTM & RTM light), prepregs production and vacuum bagging hand lay-up processes. Generally used with epoxy, vinyl ester and urethaneacrylate resins (Crestapol).

The Spread Tow structure makes it possible to achieve thinner laminates, that find application for bicycles, Formula 1, NASCAR, surfing, golf shafts, ice hockey, aerospace, industrial and Americas Cup.

Width: 100 cm

Square size: approx. 3x2 mm

Type of yarn: 1K (1000 filaments per thread)

Type of supply

55 gsm 1K Carbon Fabric Spread Tow Style E458-1 x 1 m2, supplied rolled in cardboard box: 66 €

55 gsm 1K Carbon Fabric Spread Tow Style E458-1 x 5 m2, supplied rolled in cardboard box: 299 €

55 gsm 1K Carbon Fabric Spread Tow Style E458-1 x 25 m2, supplied rolled in cardboard box: 1355 €

55 gsm 1K Carbon Fabric Spread Tow Style E458-1 x 100 m2, supplied rolled in cardboard box: 4.958 €
