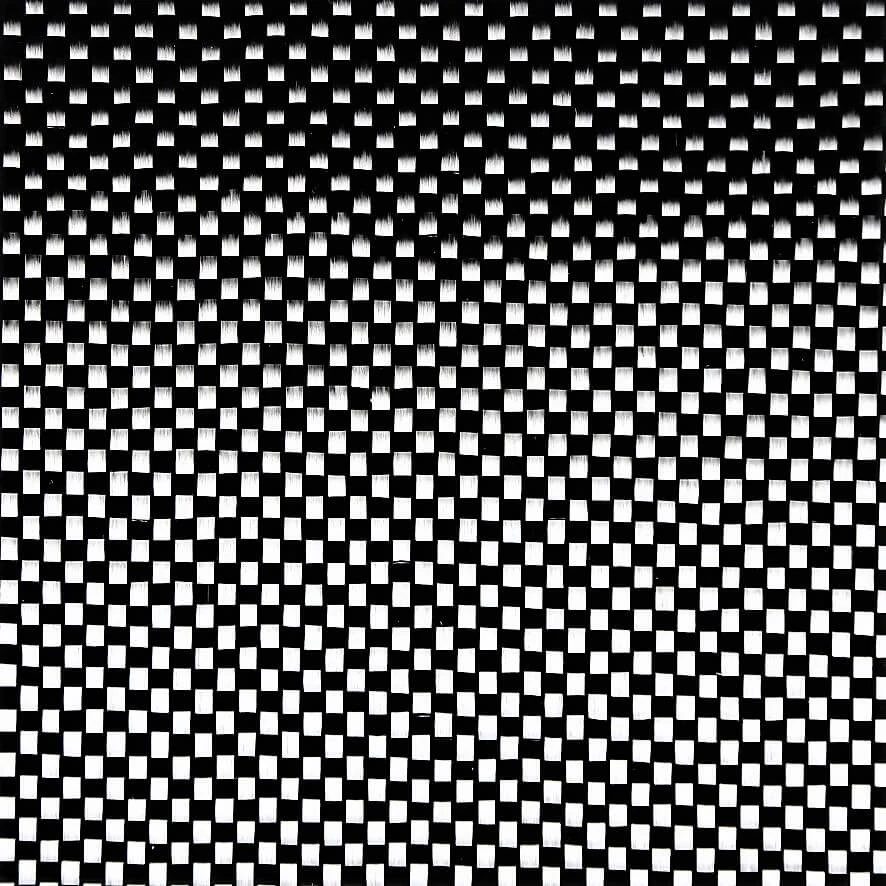

160 g/m2, 3K Carbon Fabric Spread Tow Style 447, 100 cm wide

Approved for aeronautic applications.

Spread Tow carbon reinforcements are using spread tows to produce optimized reinforcements for ultra light composites.

Spreading tows (yarns) into very thin tapes enables reinforcements in woven structure as well as unidirectional tapes with mechanical performance and possibility for weight savings that are unique compared to conventional reinforcements.

These type of fabrics are suitable for infusion, injection (RTM & RTM light), prepregs production and vacuum bagging hand lay-up processes. Generally used with epoxy, vinyl ester and urethaneacrylate resins (Crestapol).

The Spread Tow UD tapes produced are much thinner than conventional carbon fiber tapes and have more material packed in the same area which gives better mechanical performance.

The Spread Tow structure makes it possible to achieve thinner laminates, that find application for bicycles, Formula 1, NASCAR, surfing, golf shafts, ice hockey, aerospace, industrial and Americas Cup.

Width: 100 cm

Type of carbon yarn: Grafil TR30S

Type of supply

160 g/m2, Carbon Fabric 3K Spread Tow Style 447 x 1 m2, supplied rolled in cardboard box

160 g/m2, Carbon Fabric 3K Spread Tow Style 447 x 5 m2, supplied rolled in cardboard box

160 g/m2, Carbon Fabric 3K Spread Tow Style 447 x 25 m2, supplied rolled in cardboard box

160 g/m2, Carbon Fabric 3K Spread Tow Style 447 x 100 m2, supplied rolled in cardboard box
